RESIDENTIAL & SMALL SITES

NexBlue Edge 2

Smart charging that just works. 1.4–22 kW, every grid type, and a four-minute install.

BECOME A DEALERSPECIFICATIONS
SIMPLE TO USE

Owning an EV is simple. Your home charging should be too.

We have done all the difficult stuff to ensure that you have simplicity and intuitive products.

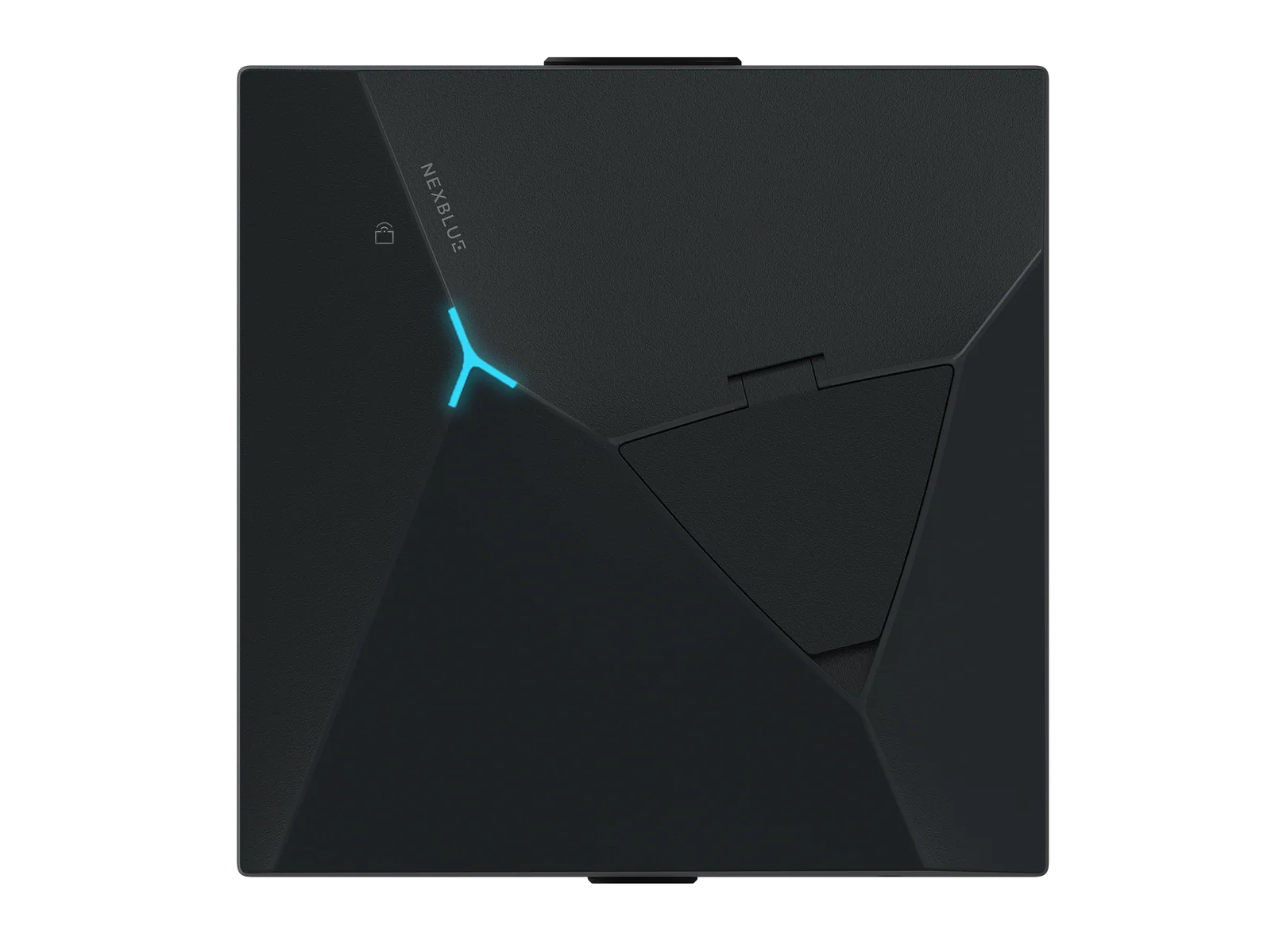

NexBlue Edge charger, front view, blue

Adaptive Max Charging

1.4–22 kW · Single/Three-phase · TN/TT/IT

Always Connected & Updated

Ethernet · Wi-Fi · 4G eSIM · Seamless OTA

Future-Ready Standards

ISO 15118 · V2G · Plug & Charge · OCPP 1.6-J/2.0.1

Safety & Reliability

40+ Smart Sensors · TÜV-Certified Protection

Smart Load & Phase Control

Dynamic Balancing with Auto 3-to-1 Phase Switching

Solar-Ready Efficiency

Harness solar surplus to maximize self-consumption

Smart Cost Saving

EcoPilot schedules off-peak charging for best price

Quick Setup & Easy Service

4-Minute Install · NFC One-Tap Commission · RFID Backplate

Intelligent Control Anywhere

Real-time data, energy tracking & remote management via App & Portal

SMART ENERGY

Optimize your charging

Your charging might be constrained by several factors. Our products offer a comprehensive solution to ensure that you get the highest available speed and balanced consumption at the lowest rates. Even on a cloudy day.

SMART ENERGY

Charges as fast as the house allows

Paired with NexBlue Zen, the charger balances load locally and in the cloud, picks the right phase automatically and switches between 3-phase and 1-phase to use solar surplus. EcoPilot schedules sessions for the cheapest tariff.

Dynamic local and cloud load balancing
Automatic phase selection and 3→1 phase switching
Solar surplus charging
EcoPilot dynamic tariff mode
READY FOR WHAT COMES NEXT

ISO 15118, V2G and Plug & Charge in the box

Hardware and software prepared for ISO 15118-2 and -20. Plug & Charge is available today; bidirectional AC charging is validated and waits only for the cars. Local OCPP 1.6-J and 2.0.1 keep your backend choice open.

Plug & Charge (PnC) available
AC bidirectional (V2G) validated
Local OCPP 1.6-J & 2.0.1
Native APIs for integrations
NexBlue Edge charger with the front cover open
40+
smart sensors for protection and safety
IP54
and IK10 — outdoor, impact resistant
5 yr
warranty, handled by NexBlue
−30°
to +50 °C operating range

What is included in the package?

A NexBlue Edge 2 charger
A NexBlue Edge 2 charger

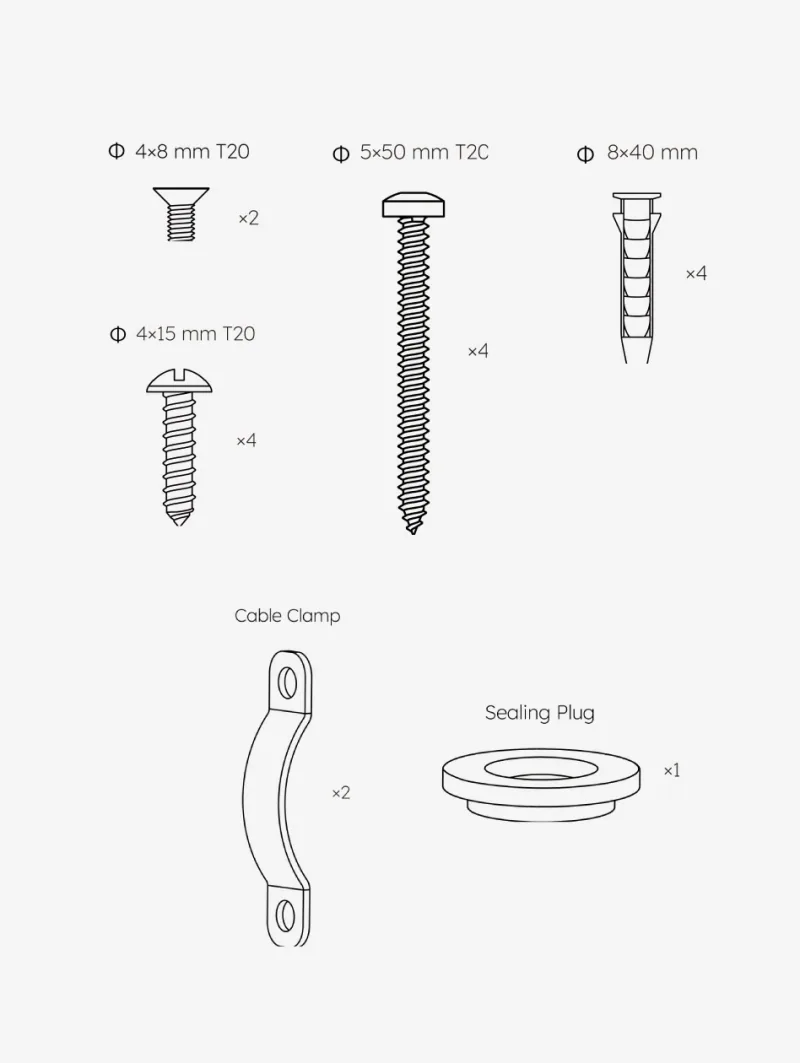

Installation kits
Installation kits
An installer & user manual
An installer & user manual
A NexBlue RFID card
A NexBlue RFID card

Specifications

GENERAL+
Dimensions
H 235 × W 230 × D 107 mm
Wall mounting
H 206 × W 130 mm
Weight
2.3 kg
Operating temperature
−30 °C to +50 °C
Storage temperature
−40 °C to +70 °C
Relative humidity
5 % to 95 %
Max. altitude in use
< 2,000 m
Warranty
5 years
CHARGING+
Charging capacity
1.4–22 kW
Connector
Type 2 (IEC 62196-2), electronic lock with permanent locking option
Rated current
6 A single-phase to 32 A three-phase
Maximum output current
32 A
Voltage
3 × 400 V AC / 230 V AC (±10 %)
Installation grid
TN, IT or TT (automatic detection)
Grid frequency
50 Hz
Built-in energy meter
±1 %
Group load balancing
Max. 5 units per location
CONNECTIVITY+
WiFi
2.4 GHz 802.11 b/g/n
Built-in eSIM
4G LTE Cat 1
Ethernet
RJ45, 10M / 100M
Bluetooth
BLE 4.2
Local radio frequency
Nexus™ RF
OCPP
Local OCPP 1.6-J & 2.0.1
ISO 15118
V2G / Plug & Charge ready
Other interfaces
RS-485, 1 or 3 CT clamps, external grid control
PROTECTION+
Residual current protection
RCD-DD 6 mA DC (IEC 62955) + 30 mA AC (IEC 60947-2, Annex M)
IP class
IP54
IK class
IK10
Insulation class
Class I
Overvoltage category
Category III
EMC level
Class B
Additional protection
Overload, over/undervoltage, temperature, relay welding, CP diode detection, humidity
USER INTERFACE+
Display
LED
Enclosure
Plastic
LED indication
Red / Green / Blue / White / Orange
RFID reader
ISO/IEC 14443 Type A, MIFARE Classic®
Start mode
myNexBlue app / RFID / NFC / Plug & Play / AutoCharge
COMPLIANCE+
Complies with
2014/53/EU (RED) · 2014/35/EU (LVD) · 2014/30/EU (EMC) · 2011/65/EU (RoHS)
REACH
Regulation (EC) No 1907/2006
MID
— (see Edge Max)

Compare products

Edge 2Edge MaxDeltaDelta Max
Ideal project type
Residential & small-scale
Small-scale with MID billing
Workplace & commercial
Large sites with MID billing
Chargers per location
Max. 5
Max. 5
Unlimited
Unlimited
Charging capacity
1.4–22 kW
1.4–22 kW
1.4–22 kW
1.4–22 kW
Display
LED
OLED
LED
OLED
MID certified
—
Yes
—
Yes
Load management
Local & cloud
Local & cloud
Local & cloud
Local & cloud
OCPP 1.6-J & 2.0.1
Yes
Yes
Yes
Yes

Works with

NexBlue Zen Current Sensor with clamps
NexBlue Zen Current Sensor
CT-clamp load management for any site
NexBlue Zen Smart Meter
NexBlue Zen Smart Meter
Plug & Play via the P1/HAN port
NexBlue charging cable with Type 2 connectors
Accessories
Cables, hooks, lids, RFID, clamps
